XML to CSV Converter

Turn any XML into CSV format with PicoToolkit

Convert XML files into clean CSV tables in seconds — ideal for analysts, developers and e-commerce teams who need spreadsheet-ready data. Online, no install required; supports commas, tabs, pipes and custom delimiters.

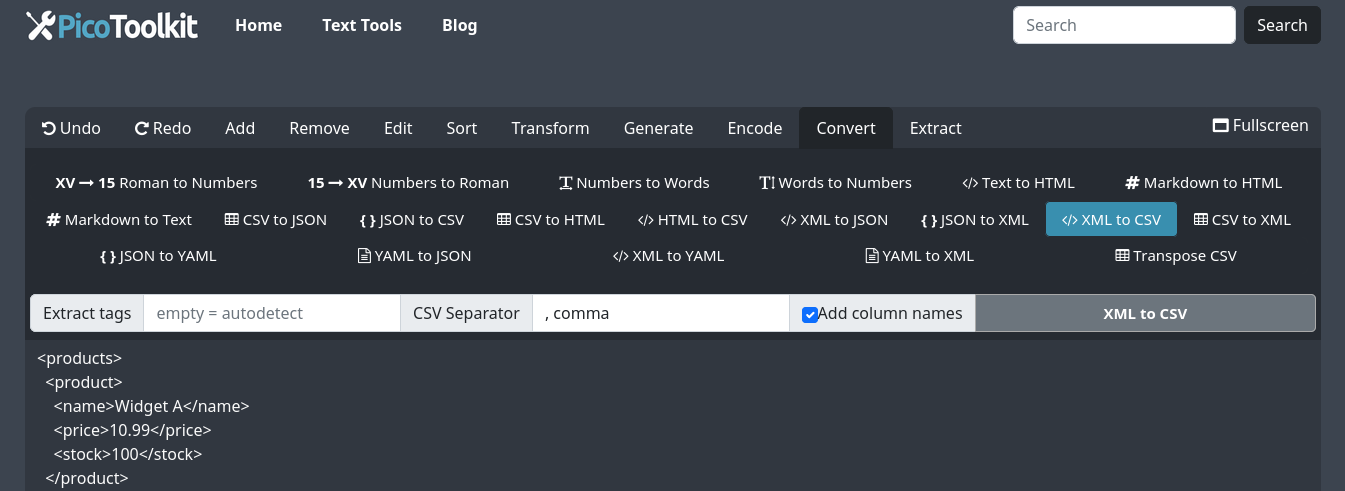

How to use

1. Paste or upload your XML into the input area.
2. Choose a record node (the XML element that represents one row) and pick a delimiter (comma, tab, pipe, semicolon).
3. Preview the mapping — tag names become CSV headers, attributes appear as separate columns.
4. Download the CSV or copy the output to your clipboard.

Note: the converter handles files up to what your browser and available memory can handle.

Common use cases

• Convert product feeds to CSV for Google Shopping or other marketplaces.
• Extract logistics/warehouse feeds (availability, dimensions, weight, location).
• Turn sitemap.xml or RSS/ATOM feeds into URL lists for analysis.
• Flatten API XML responses for import into spreadsheets or databases.

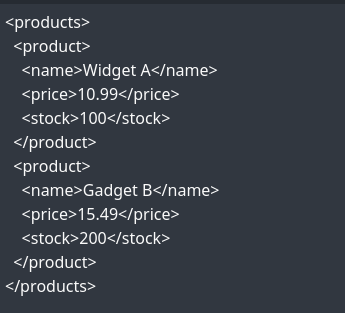

Examples

Example A — Product feed (Google Shopping style)

Input (sample XML):

<products>
  <product>
    <id>123</id>
    <title>Blue T-shirt</title>
    <price currency="USD">19.99</price>
    <availability>in stock</availability>
    <gtin>0001234567890</gtin>
  </product>
</products>

Output (CSV):

id,title,price_currency,price,availability,gtin
123,"Blue T-shirt",USD,19.99,"in stock",0001234567890

Notes: element text becomes a column. Attributes (like price currency) become separate columns (price_currency above).

Example B — Logistics feed (availability & dimensions)

Input (sample XML):

<shipments>
  <item>
    <sku>A-11</sku>
    <available>true</available>
    <dimensions>
      <length>30</length>
      <width>20</width>
      <height>10</height>
    </dimensions>
    <weight unit="kg">1.5</weight>
    <location>WH-01</location>
  </item>
</shipments>

Output (CSV):

sku,available,dimensions_length,dimensions_width,dimensions_height,weight_unit,weight,location
A-11,true,30,20,10,kg,1.5,WH-01

Tip: numeric formats and units are preserved as text; normalize units before conversion if you need consistent numeric columns.

Example C — Sitemap / RSS

Input (sitemap):

<urlset>
  <url>
    <loc>https://example.com/page1</loc>
    <lastmod>2023-09-01</lastmod>
    <priority>0.8</priority>
  </url>
</urlset>

Output (CSV):

loc,lastmod,priority
https://example.com/page1,2023-09-01,0.8

Example D — Nested / repeated elements

Input (multiple images per product):

<products>
  <product>
    <id>222</id>
    <title>Sneakers</title>
    <images>
      <image>img1.jpg</image>
      <image>img2.jpg</image>
    </images>
  </product>
</products>

Two common outputs:

• Flattened (one row per product; repeated values concatenated):

  id,title,images
  222,"Sneakers","img1.jpg|img2.jpg"

  Use a pipe or semicolon as a separator inside the cell.
• Expanded (one row per repeated child):

  id,title,image

  Choose this when you need one record per child element.

Tips & edge cases

• Attributes vs elements: attributes become separate columns (attribute names appended to the element column name if needed).
• Missing tags produce empty cells — clean or normalize data first if needed.
• Namespaces: tags with namespaces are converted using their full name (you may need to pre-clean namespaces for simpler headers).
• Repeated child nodes: choose flattening (concatenate) or expansion (multiple rows) depending on your workflow.
• Escaping: fields containing delimiters or newlines are quoted; embedded quotes are doubled per CSV rules.
• Encoding: use UTF-8 for best results; ensure your browser handles the file encoding correctly.
• Pre-process suggestions: remove irrelevant nodes, normalize date formats, or trim whitespace to get cleaner CSV output.

Troubleshooting & when not to use

• If XML is extremely large or deeply nested and needs custom mapping (complex XPath transforms), consider a script or ETL tool instead.
• If you require a strict schema mapping or advanced transformations, export to JSON first (use /text/xml-to-json) and process programmatically.

FAQ

Can I convert sitemap.xml to CSV?

Yes — choose the URL-level node (usually <url>) as the record node and export loc, lastmod, priority, etc.

How are XML attributes handled?

Attributes are converted into separate columns. For example, <price currency="USD"> becomes two columns: price_currency and price.

Can I convert multiple records in one file?

Yes — each chosen record node becomes a CSV row. Repeated child elements can either be concatenated into one cell or expanded into multiple rows.

Do I need to install anything?

No — the tool runs in your browser. Files are processed client-side.

What file sizes are supported?

Files are limited only by what your browser and device memory can handle.
